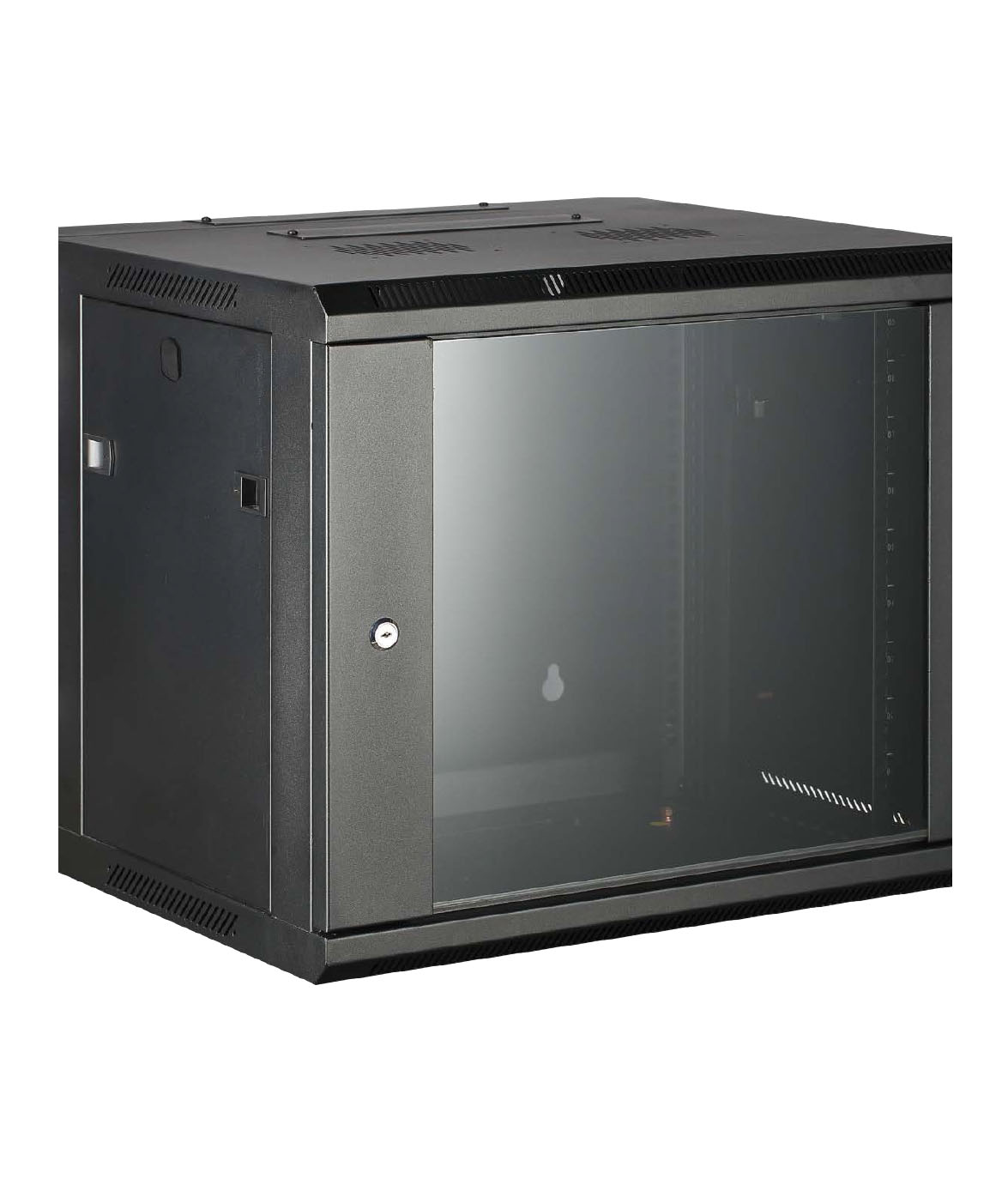

WMZ SERIES DOUBLE SECTION WALL MOUNTED CABINET

WMZ SERIES DOUBLE SECTION WALL MOUNTED CABINET

Features

  • Double section structure
    Swing frame allows the cabinet to swing away from the
    wall for easy access to equipment and cabling.
  • Sturdy welded construction
    Fully welded and assembled.
  • Optional doors
    You choice of toughened glass or vented door.
  • Loading Capacity
    Loading capacity up to 60kg.
  • Big door-opening angle
    Over 180 degrees turning angle of front door and over 90
    degrees for rear door.
Download datasheet

Specification

Model Capacity
(U)		 Dimension
W x D x H(mm)		 BU Packing Dimension KD Packing Dimension
W*D*H
(mm)		 Volume
(CBM)		 Carton A
W x D x H(mm)		 Carton B
W x D x H(mm)		 Volume
(CBM)
FO-REP/WMZ6054 4U 600 x 550 x 280 620 x 575 x 305 0.109 620 x 180 x 570 0.064
FO-REP/WMZ6056 6U 600 x 550 x 370 620 x 575 x 395 0.141 620 x 110 x 570 620 x 130 x 390 0.07
FO-REP/WMZ6059 9U 600 x 550 x 505 620 x 575 x 525 0.187 620 x 110 x 570 620 x 130 x 525 0.081
FO-REP/WMZ60512 12U 600 x 550 x 640 620 x 575 x 665 0.237 620 x 110 x 570 620 x 130 x 660 0.092
FO-REP/WMZ60515 15U 600 x 550 x 780 620 x 575 x 805 0.287 620 x 110 x 570 620 x 130 x 800 0.103
FO-REP/WMZ60518 18U 600 x 550 x 910 620 x 575 x 935 0.333 620 x 110 x 570 620 x 130 x 930 0.114
FO-REP/WMZ60520 20U 600 x 550 x 1000 620 x 575 x 1020 0.364 620 x 110 x 570 620 x 130 x 1020 0.121
